Determining a Fuel-efficient Engine RPM

You can roughly calculate your motoring range . . . but keep reserve fuel, just in

0

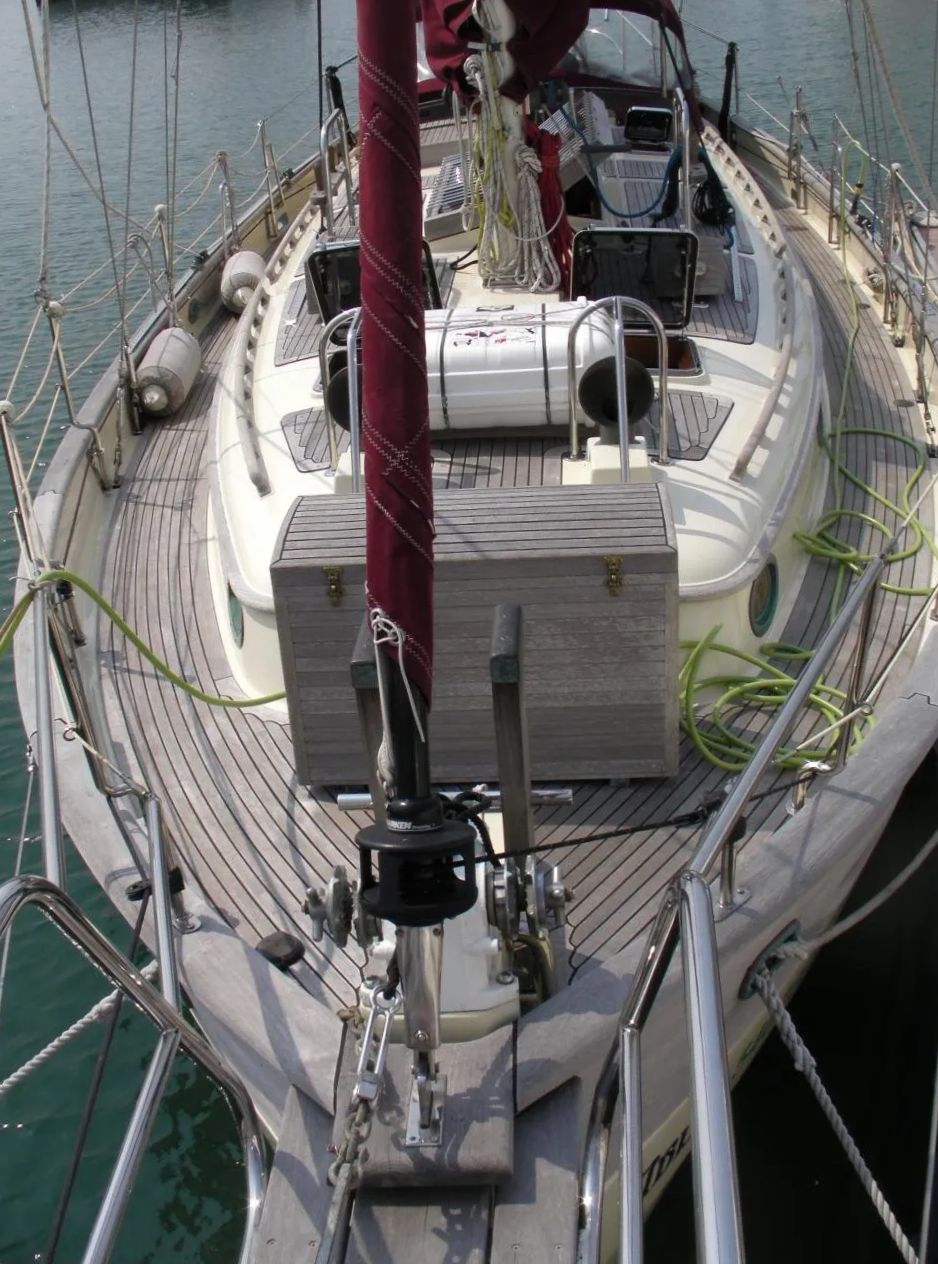

My boat is a Hans Christian 41T, with a waterline length of 36 feet and a displacement of 38,000 pounds. The engine is a Volvo Penta TMD-30A rated at 90 horsepower. The prop is a Maxprop, three-blade, 20-inch prop with 12-inch pitch. A table illustrating speed at various RPMs shows that there is a linear increase of speed with RPM up to about 6 knots (2,600 RPM), but then the speed tapers off with increased RPM. Based on this, I presume that motoring at about 2,600 RPM is optimal fuel burn and speed. Is this correct?

Fran Tansley

Grace, Hans Christian 41T

Ventura, Calif.

Assuming the engine and prop are matched for your boat (confirm prop diameter and pitch with Max-Prop), a fuel-efficient cruising speed for a displacement sailboat like yours is usually somewhere between 60 and 70 percent of its hull speed. Pushing any displacement cruising boat beyond 75 percent of its hull speed greatly increases drag, so that tiny gains in speed require significant increases in horsepower.

To estimate hull speed for a displacement cruiser such as yours, we’d use the old-school formula 1.34 x √LWL (LWL=waterline length). So the hull speed for your 36-foot waterline is about 8 knots (1.34 x 6 = 8). Your proposed 6-knot speed is right at the 75-percent mark (8 x .75 = 6). At faster speeds, drag exacts a much bigger toll on fuel economy.

Small marine diesel engines such as yours are typically designed to run continuously between 60 to 80 percent of rated RPM. Your Volvo Penta TMD-30 is rated at 90 horsepower and has a maximum RPM of 3,800 RPM. Your suggested 2,500 RPM is 65 percent of maximum RPM, so it is an acceptable choice for continuous duty.

What’s missing is a propeller power curve for your engine. This curve graphs the actual horsepower that your prop uses at various RPM, data that you need for calculating fuel consumption. The TMD-30 brochure (www.volvopenta.com) has a power curve illustrating the engines horsepower at various RPM. Using this curve, you can apply the constant C to the following equation: propeller HP = C x RPM2.7 (where C = rated HP/RPM2.7). However, a quick way to estimate propeller horsepower is to use a table recommended to us by naval architect Dave Gerr.

Your preferred cruising RPM of 2,500 is 65 percent of the maximum 3,800. According to Gerrs table, at 65 percent of maximum RPM, power at the propeller is about 26 percent of maximum horsepower. So your engines propeller power at 2,500 RPM is about 23 horsepower (90 HP x .26 = 23.4 HP). This is the actual horsepower being used to push your boat at 2,500 RPM.

The Volvo Penta brochure also has a fuel consumption curve, which tracks consumption based on RPM and horsepower (measured at the flywheel). Again, you could use this curve to approximate fuel burn, but applying standardized fuel consumption ratings to the real world can be misleading. Gerr suggests a simple formula to calculate diesel consumption: gallons/hour = 0.054 x HP (at the prop). Using this formula, your Volvo TMD-30 burns about 1.3 gallons per hour at 2,500 RPM (.054 x 23.4 HP at prop = 1.26 gal./hr.).

Using your speed table and Gerr’s formulas, we created an index for RPM, speed, and range for your boat with a 100-gallon tank (note caveat below):

1,900 RPM, 4.8 knots, ≈ 655 nm

2,500 RPM, 6 knots, ≈ 460 nm

3,000 RPM, 6.9 knots, ≈ 305 nm

For more on engine performance curves and fuel efficiency, see Gerrs article Engine Power Curves, at www.gerrmarine.com. Gerr is also the author of some of our favorite books for boat geeks, including The Nature of Boats, and The Propeller Handbook. Both can be found at our online bookstore at www.practical-sailor.com/books.

Important caveat: These are estimates. Many factors can impact fuel efficiency, so it is important to ration fuel on a long voyage. A sensible approach is to use no more than one-third of your fuel in the first half of the trip, one-third in the second half, and keep one-third in reserve.

Darrell Nicholson
